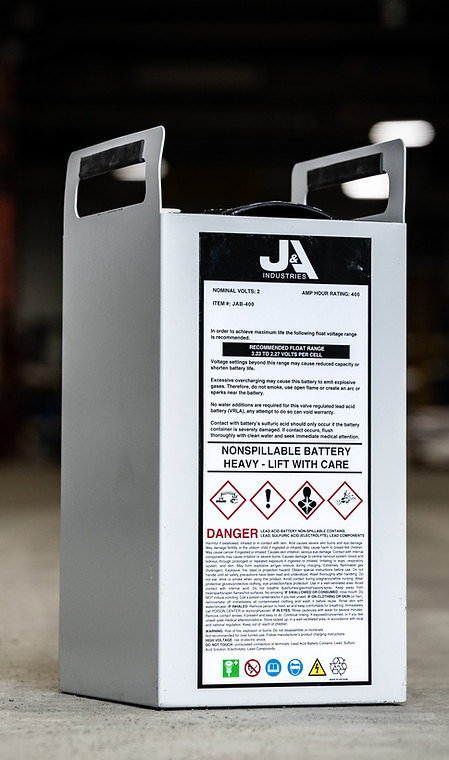

JAB-300
Length:
Width
Height:
Total Height:
Terminal:
Cells Per Unit:
Voltage Per Unit:
Capacity:
Weight:
Internal Resistance:
Terminal:
Max Discharging Current:
Design Life:
Max Charging Current:
Reference Capacity:
Float Charging Voltage:
Cycle Use Voltage:
Operating Temperature Ranges:
Normal Operating
Temperature Ranges:
Self Discharge:
Container Material:
177+2mm (7.0 inches)
155+2mm (6.1 inches)
302mm (13.0 inches)
342+2mm (13.5 inches)
M5 - 6~7 N*m
M6 - 8-10 N*m
M8 - 10~12 N*m
1
2V
300Ah@10hr-rate to 1.80V per cell @25
Approx. 16.0 Kg (Tolerance±5%) or 46 lbs
≤0.75mΩ(Full Charge Condition @25)
Default F10(M8)
1500A (5 sec)
20 Year (floating charge)
60.0 A
C1 - 165.0 Ah
СЗ - 225.0Ah
C5 - 255.0 Ah
C10 - 300.0 Ah
2.27 V-2.30 V @25°C
Temperature Compensation: -3mV/°C/Cell|
2.43 V-2.47 V @25°C
Temperature Compensation: -4mV/°C/Cell
Discharge: -20ºC~60ºC
Charge 0°C~50°C
Storage: -20°C~60°C
25°C+5°C
J&A Valve Regulated Lead Acid (VRLA) batteries can be storied for up to 6 months at 25°C and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25°C. Please charge batteries before using.
A.B.S. UL94-HB, UL94-VO Optional.
Constant Current Discharge Characteristics: A(25ºC)
FV/Time | 15MIN | 30MIN | 1HR | 2HR | 3HR | 4HR | 5HR | 8HR | 10HR |
|---|---|---|---|---|---|---|---|---|---|
1.60V | 461.5 | 293.1 | 183.3 | 112.9 | 84.61 | 68.11 | 56.6 | 38.04 | 31.65 |
1.65V | 432.4 | 281.4 | 177 | 109.3 | 82 | 66.27 | 55.13 | 37.61 | 31.26 |
1.70V | 405 | 269 | 171.3 | 105.7 | 79.78 | 64.47 | 53.7 | 37.03 | 30.79 |
1.75V | 376.8 | 257.1 | 165 | 102 | 77.39 | 62.82 | 52.35 | 36.52 | 30.39 |
1.80V | 348 | 245.7 | 158.7 | 98.33 | 75 | 61.01 | 51 | 35.89 | 30 |
1.85V | 288.7 | 211.6 | 1423 | 90.1 | 69.33 | 56.71 | 47.56 | 33.7 | 28.24 |
Constant Power Discharge Characteristics: WPC(25ºC)
FV/Time | 15MIN | 30MIN | 1HR | 2HR | 3HR | 4HR | 5HR | 8HR | 10HR |
|---|---|---|---|---|---|---|---|---|---|
1.60V | 806.7 | 532.4 | 344.5 | 213.9 | 161.6 | 130.8 | 109.1 | 74.29 | 62.21 |
1.65V | 767 | 516.5 | 334.6 | 208.1 | 157.3 | 127.7 | 106.7 | 73.61 | 61.54 |
1.70V | 729.2 | 498.6 | 325.7 | 202.4 | 153.7 | 124.7 | 104.3 | 72.63 | 60.69 |
1.75V | 688.4 | 481.5 | 315.7 | 196.2 | 149.7 | 122 | 102 | 71.77 | 59.97 |
1.80V | 644.6 | 464.8 | 305.4 | 190.1 | 145.7 | 118.9 | 99.7 | 70.71 | 59.28 |
1.85V | 542.5 | 404.3 | 275.6 | 175.2 | 135.3 | 110.9 | 93.28 | 66.54 | 55.89 |
Discharge Characteristics Curve
Charge Characteristics Curve for Cycle Use (IU)
Cycle Life In Relation to Depth of Discharge
Relationship Between Charging Voltage and Temperature
Temperature Effects on Capacity
Storage Characteristics
Effect of Temperature on Long Term Life
Relationship of OCV and State of Charge (20ºC)
